Our Products

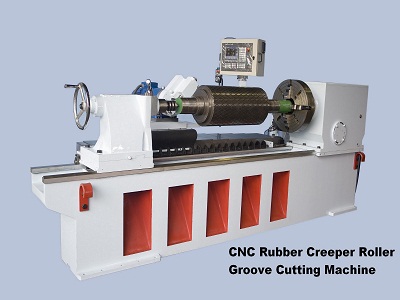

1) CNC Rubber Creeper Roller Groove Cutting Machine.
.jpg)
| Model Name | HC 900 |
|---|---|
| Country | Malaysia |
| Manufacturer | Quality Metal Works Sdn. Bhd. |
| Machine Dimension (LxWxH) | 4430mm x 1530mm x 1585mm |
| Machine Weight | App. 5000kg |
| Control System | HNC-21 |
| Linked Axes (Three Axes) | X, Y, Z |
| Power Supply | 415V/50Hz |
| Type of Application | Milling/ Grinding/ Engraving |
| Maximum Workpiece Load | App. 3000kg |
| Minimum Workpiece Size | 300mm (dia) x 100mm (Face Length) |
| Maximum Workpiece Size | 900mm (dia) x 1300mm (Face Length) |
Advantages
1) Can mill helical and diamond shape in rubber, plastic and metal base rollers.
2) Save time.
3) Save labour.
4) High accurancy.
5) Simple operate.

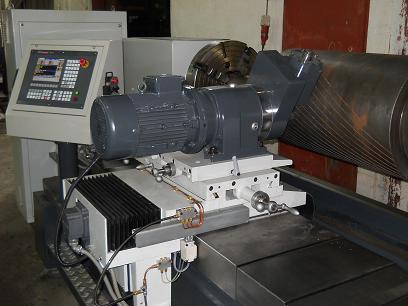

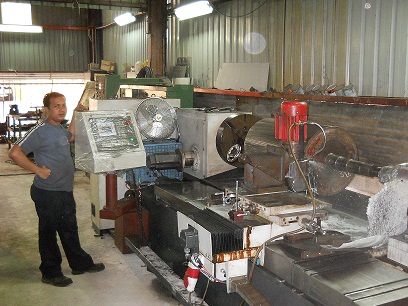

Milling Application
For video please click here.

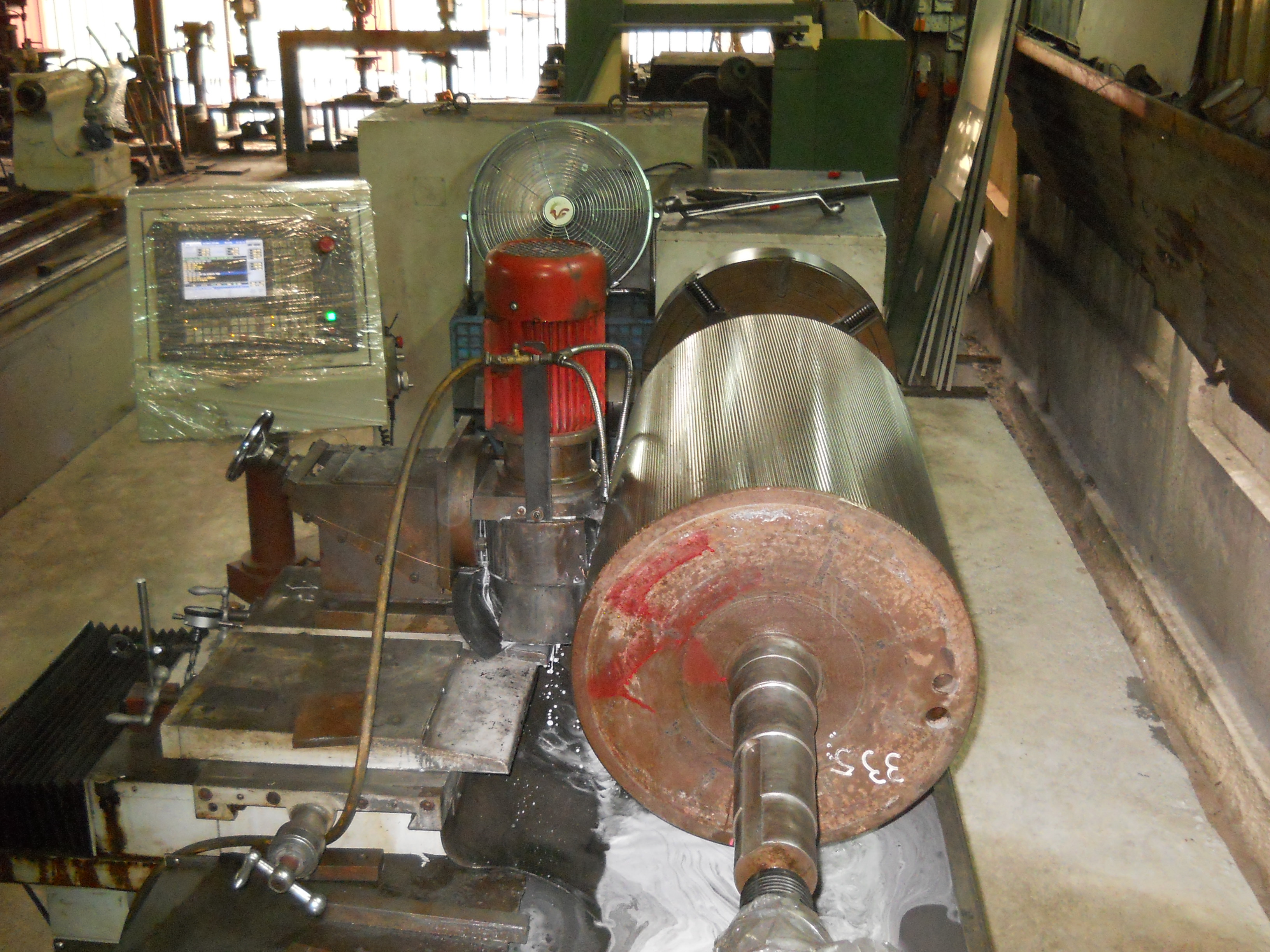

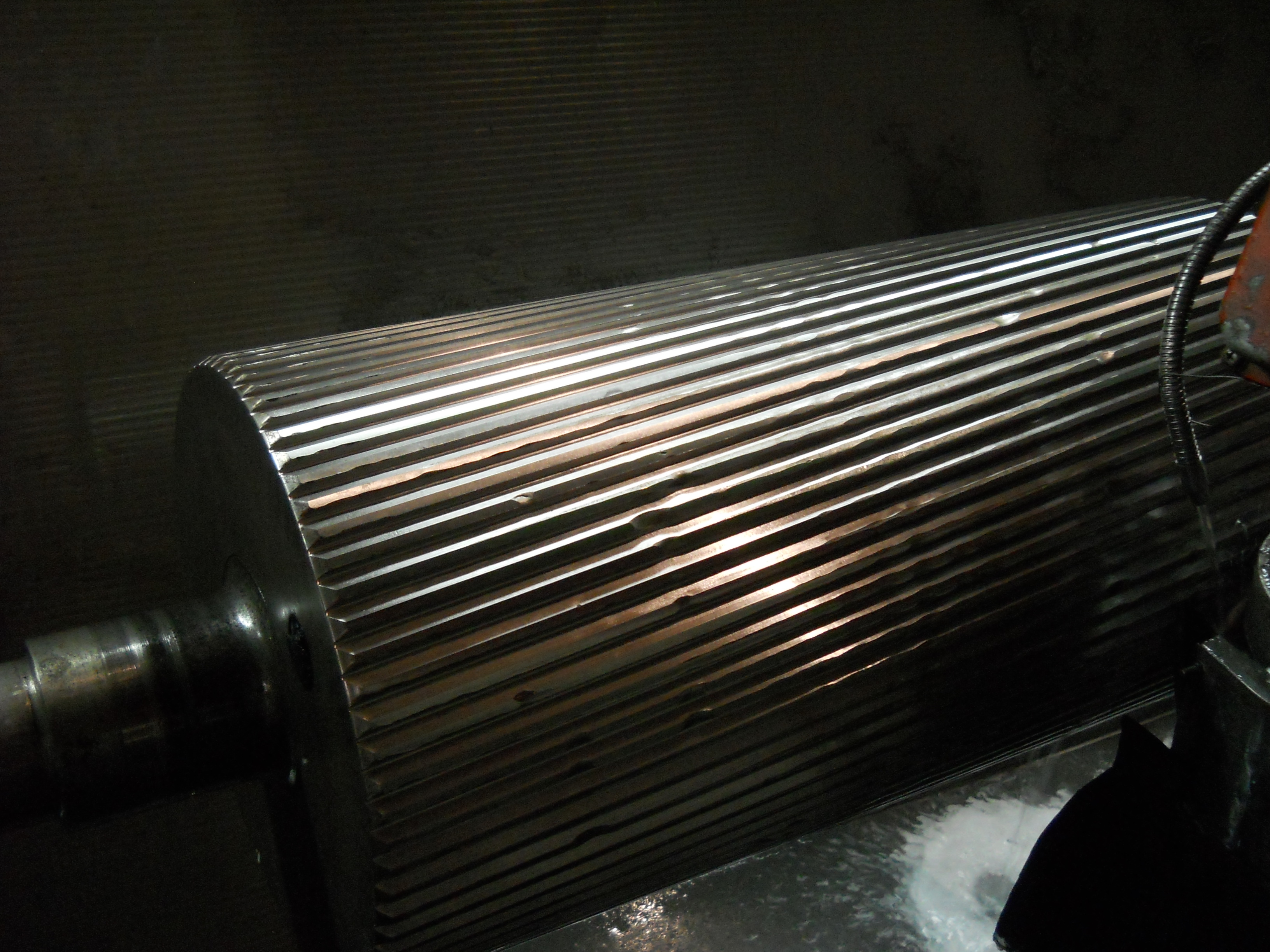

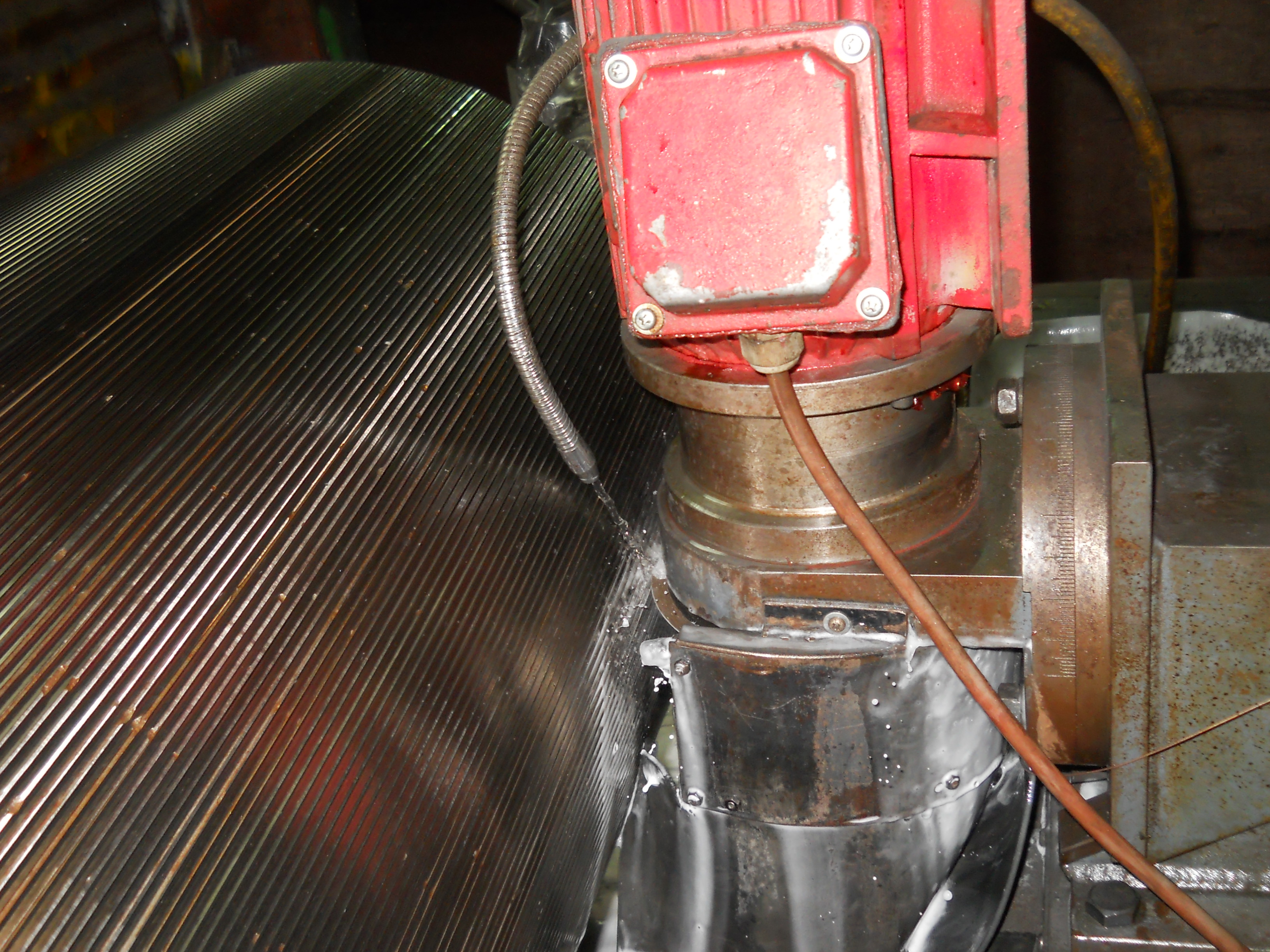

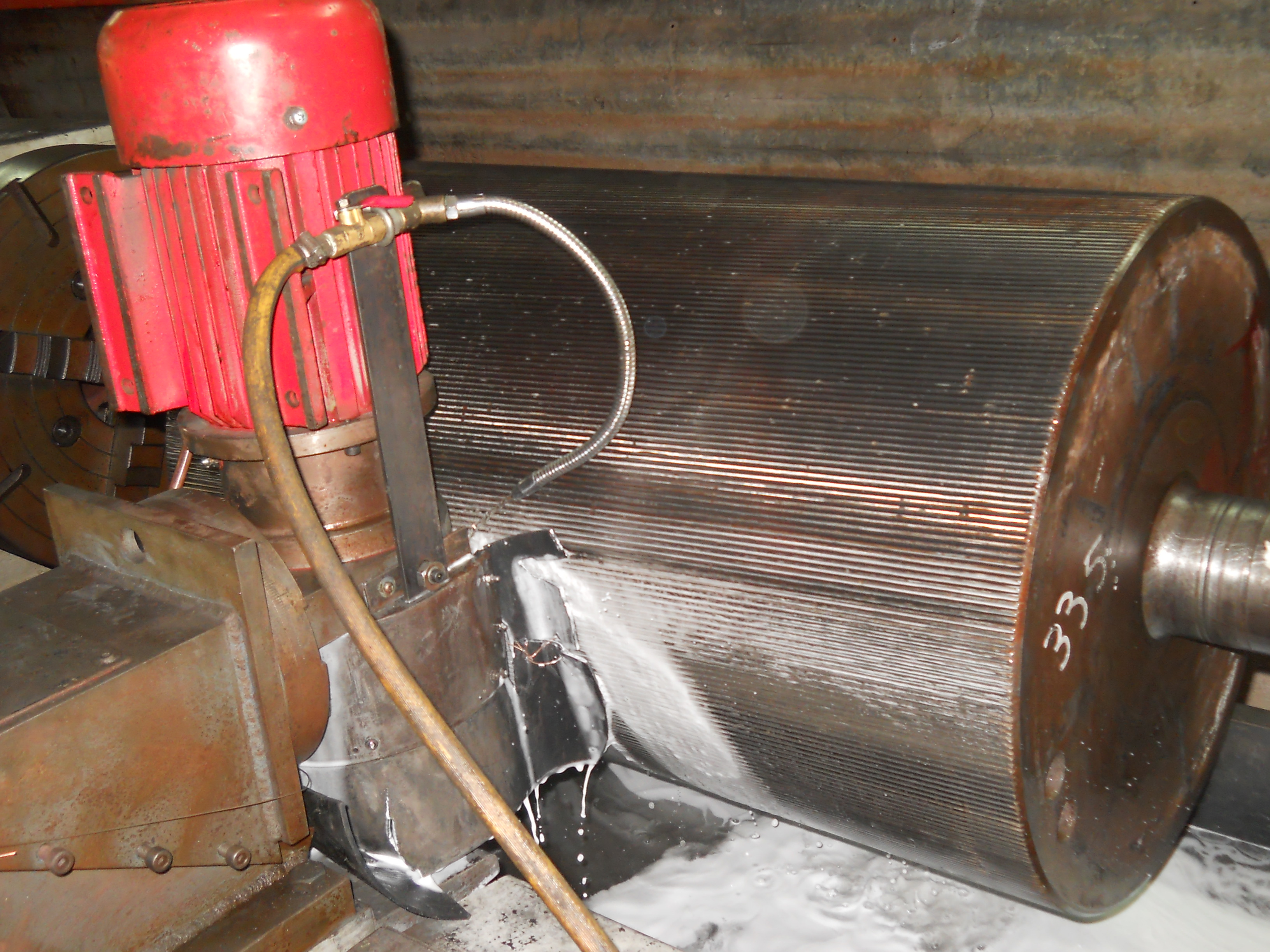

Grinding Application
For video please click here.
2) CNC Big Hollow Spindle Lathe Machine.
Coming soon
